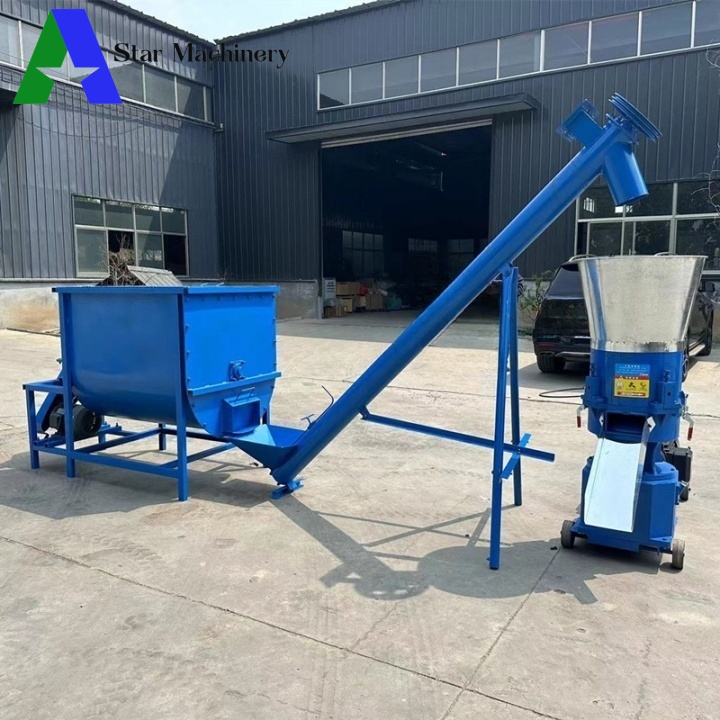

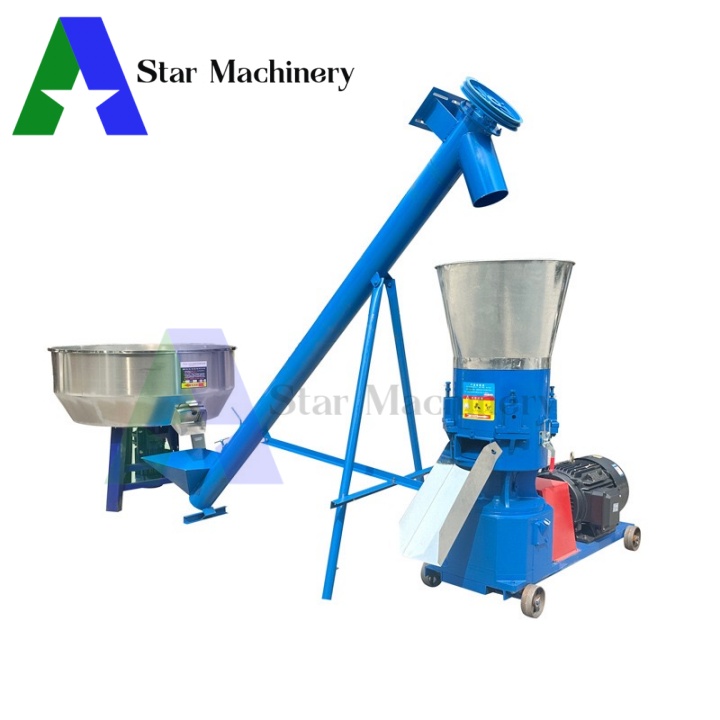

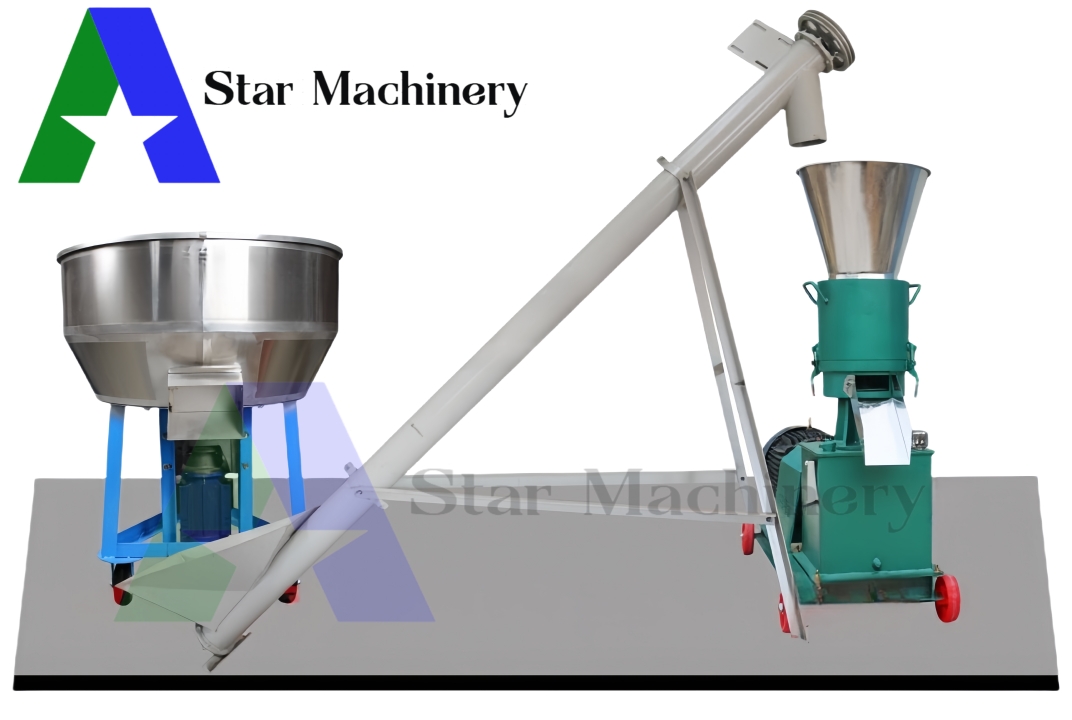

Small Feed Production Line
Product Description
Small feed pellet production equipment is specially designed for home use or small-scale farms to make animal feed pellets efficiently. It helps turn raw materials like grains and grasses into compact, nutritious pellets for livestock and poultry.
The system usually includes several key components:
1. Mixer: This machine blends different raw materials evenly, ensuring a balanced mix of nutrients for the animals.
2. Screw Conveyor: Once the feed is mixed, the conveyor moves it smoothly to the pellet-making machine without manual handling.
3. Pellet Machine: This is the core part of the system. It presses the mixed feed into uniform pellets that are easy to store, feed, and digest. The pellets can be used for a wide range of animals including chickens, ducks, geese, goats, and cattle.
This setup is ideal for farmers who want to improve feed quality while saving cost and time.

Technical Parameters
| Machine | Model | Capacity | Power(kw) |
| Feed Mixer | 150 | 150KG/Batch | 3 |
| Screw Conveyor | 2.2M | 2.2 | |
| Feed Pellet Machine | STAR260 | 400~500kg/h | 15 |
Other Feed Pellet Machine
Type | Power | Production KG/H | Roller | Farm Scale | |
Motor | Diesel | ||||
125 | 4.5kw | 8HP | 80-100 | 2 | Home Use |
150 | 4.5kw | 8HP | 90-150 | 2 | |
160 | 4.5-5.5kw | 10HP | 150-200 | 3 | Small Farm |
180 | 4.5-5.5kw | 10HP | 180-200 | 4 | |
210 | 7.5-11kw | 15HP | 200-300 | 2 | Medium Farm |
250-300 | 3 | ||||
230 | 7.5-11kw | 15HP | 300-400 | 3 | |
260 | 15-18.5kw | 25HP | 400-500 | 3 | |
300 | 22kw | 50HP | 800-1000 | 4 | |
400 | 37kw | 4 Cylinder-100HP | 1500-2000 | 4 | Large Farm |
500 | 55kw | 4 Cylinder-100HP | 2000-2500 | 4 | |
Application
